6058 x 2438 x 2896 mm DNV 2.7-1 Standard Open Side Door High Cube Offshore Container with Corten Steel and Side Opening Door

Type : Dry Container

Length (feet) : 20'

Capacity : 33.5 cbm

External Dimensions(l x W x H)(mm) : 6058 x 2438 x 2896 mm

Internal Dimensions(l x W x H)(mm) : 5898 x 2288 x 2477 mm

Place of Origin : Tianjin, China

Brand Name : ACE

Color : Choose

Material : Corten steel

Approval : BV GL certified

Logo : as per your requirement

Product Name : 20ft dnv offshore container

Design temp. : -20℃

Floor : Steel Floor

Surface treatment : Hot Dip Galvanized

Price : $12,000.00/pieces 1-1 pieces

MOQ : 1 pieces

Delivery Time : within 30 days

Contact Now

6058 x 2438 x 2896 mm DNV 2.7-1 Standard Open Side Door High Cube Offshore Container with Corten Steel and Side Opening Door
Hot Sale Products
Product Description
6058 x 2438 x 2896 mm DNV 2.7-1 Standard Open Side Door High Cube Offshore Container with Corten Steel and Side Opening Door
We will provide full set of Offshore Container Documents
1) DNV2.7-1 Certificate issued by BV or LR or DNVGL and Sling Certificate.(When there is sling)
2) General Arrangement Drawing
3) Manufacturing Records, like material certificate, WPS & PQR.
4) Inspection reports of NDT, Dimensions, Loading, Lifting, Painting.
DNV 2.7-1 Standard 20ft High Cube Open Side Offshore Container
Structure Material: JIS SPA-H/ GB Q345D,E36
Corner Casting: SCW480
Welding Technique: Automatic TIG welding ( Tungsten Inert Gas arc Welding ).
Surface treatment: Painted or Galvanized
Special for transportation and storage of offshore freight.
Meeting DNV 2.7-1 & EN12079 standard.
Classification Society: BV, LR, DNV certified
Design Temperature: -20°c
6058 x 2438 x 2896 mm DNV 2.7-1 Standard Open Side Door High Cube Offshore Container with Corten Steel and Side Opening Door
6058 x 2438 x 2896 mm DNV 2.7-1 Standard Open Side Door High Cube Offshore Container with Corten Steel and Side Opening Door

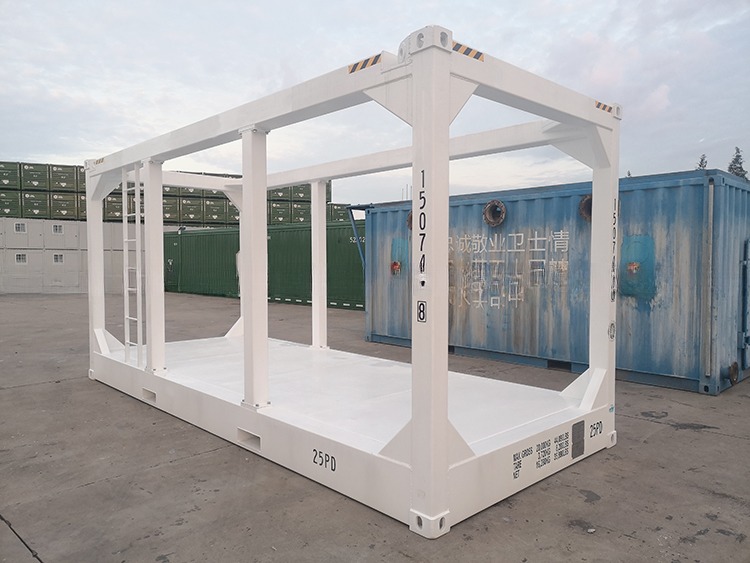

20ft Offshore Frame
6058 x 2438 x 2896 mm DNV 2.7-1 Standard Open Side Door High Cube Offshore Container with Corten Steel and Side Opening Door

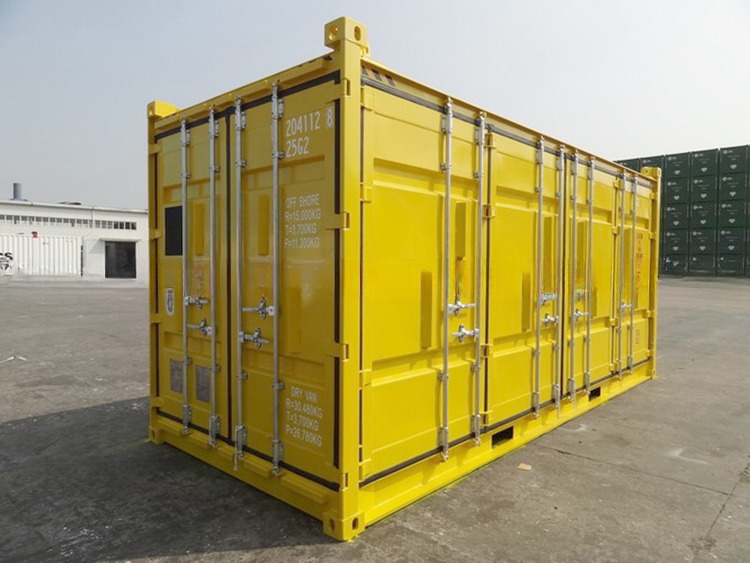

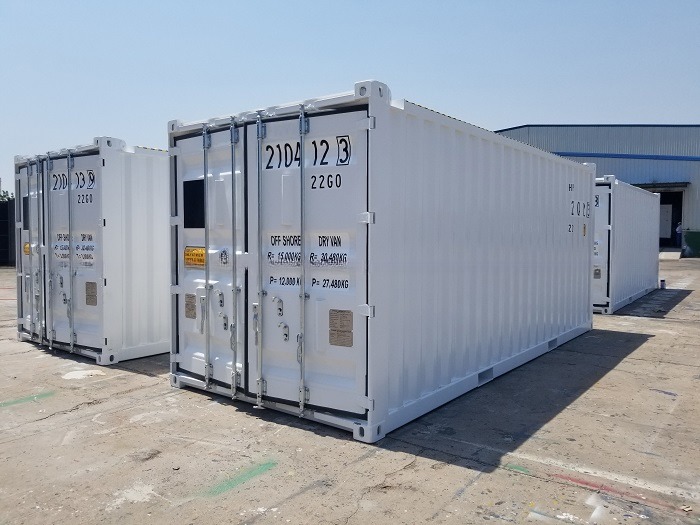

20ft Offshore Container
6058 x 2438 x 2896 mm DNV 2.7-1 Standard Open Side Door High Cube Offshore Container with Corten Steel and Side Opening Door
Product Datasheet
Specifications
20ft Side Opening Offshore Container

Dimensions
(L x W x H)
External
6.058 x 2.438 x 2.896

M
20 x 8 x 9.5

FT
Internal
5.898 x 2.280 x 2.477

M
Inside Cubic Capacity
33.50

CBM
Maximum Gross Weight
15000

KG
Tare Weight
3700

KG
Maximum Payload
11300

KG
Lifting Angle
45 degree

1. Approval by Main Classification Society: BV / LR
2. Complies With DNV 2.7-1 and ISO18055 Standard
3. Surface Treatment: High Anti-Corrosion Painting or Hot Deep Galvanized
4. Design Temperature: - 20 ℃ (Also provide - 40 ℃ Design)

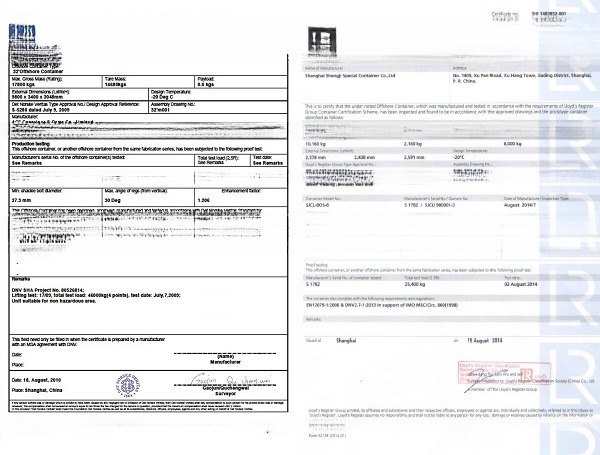

Quality Control & Certificate & Warranty
We will provide full set of Offshore Container Documents
1) DNV2.7-1 Certificate issued by BV or LR or DNVGL and Sling Certificate.(When there is sling)
2) General Arrangement Drawing
3) Manufacturing Records, like material certificate, WPS & PQR.
4) Inspection reports of NDT, Dimensions, Loading, Lifting, Painting.

6058 x 2438 x 2896 mm DNV 2.7-1 Standard Open Side Door High Cube Offshore Container with Corten Steel and Side Opening Door
